Rapid Case Kicker® for All RCBS Rock Chucker Style Presses

What makes the Case Kicker® Different? We spent a lot of time trying to improve our design and make it better and we don't merely copy others.

The question you are going to ask is: "Will this fit my Rock Chucker from 1982?" The Answer: Yes, we are familiar with all models of the RCBS presses, this will fit your old one too.

  • Click here to go to Installation Instructions Below
    • Rapid Case Kicker and Speed Chute
    Press Type

    Case Kicker Installed. Instructions Below

    The Case Kicker in Action

    Purchase From Amazon

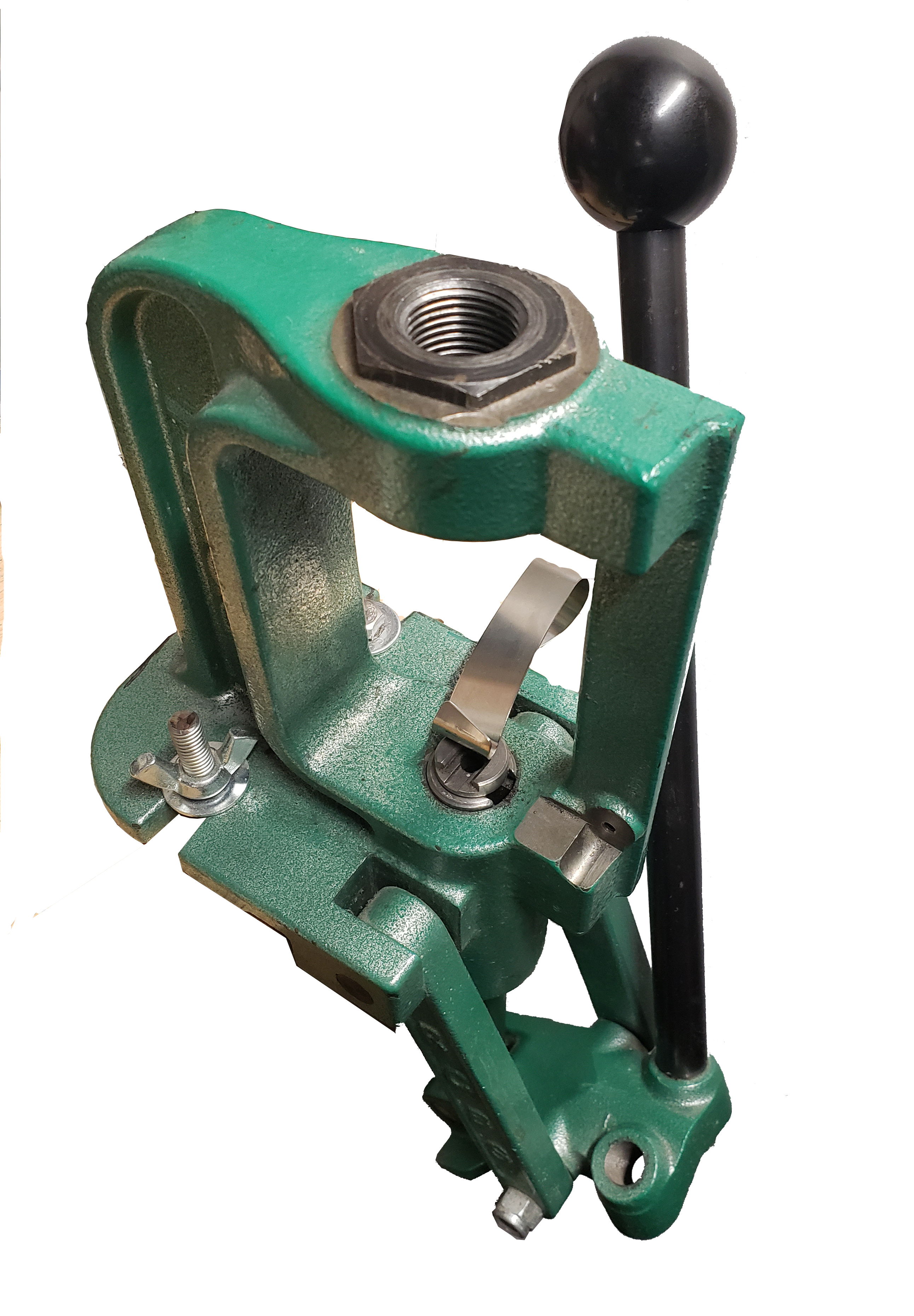

    Purchase the RCBS Rock Chucker Supreme Press

Please Follow all the Instructions Below for Best Performance

The mounting for all of our Case Kickers that go under the press mount the same and the following instructions will give you a good idea on how to mount it on any press.

HTML Ordered List
  1. The Case Kicker Requires no additional space to mount your press.

  2. The Case Kicker requires no additional mounting hardware.

  3. The Speed Chute requires only one screw to mount to your bench

It's that simple.

Once you have mounted your press loosen the two main bolts that are holding your press to the bench.

The Case Kicker has an angled main radius preventing press and case ejector interference under the press, preventing a decreased life expectancy and inconsistent operation of the case ejector and the press components.

Slide the Case Kicker under the press as shown.

Adjust the Case Kicker to cover the shell plate that is angled toward the left.

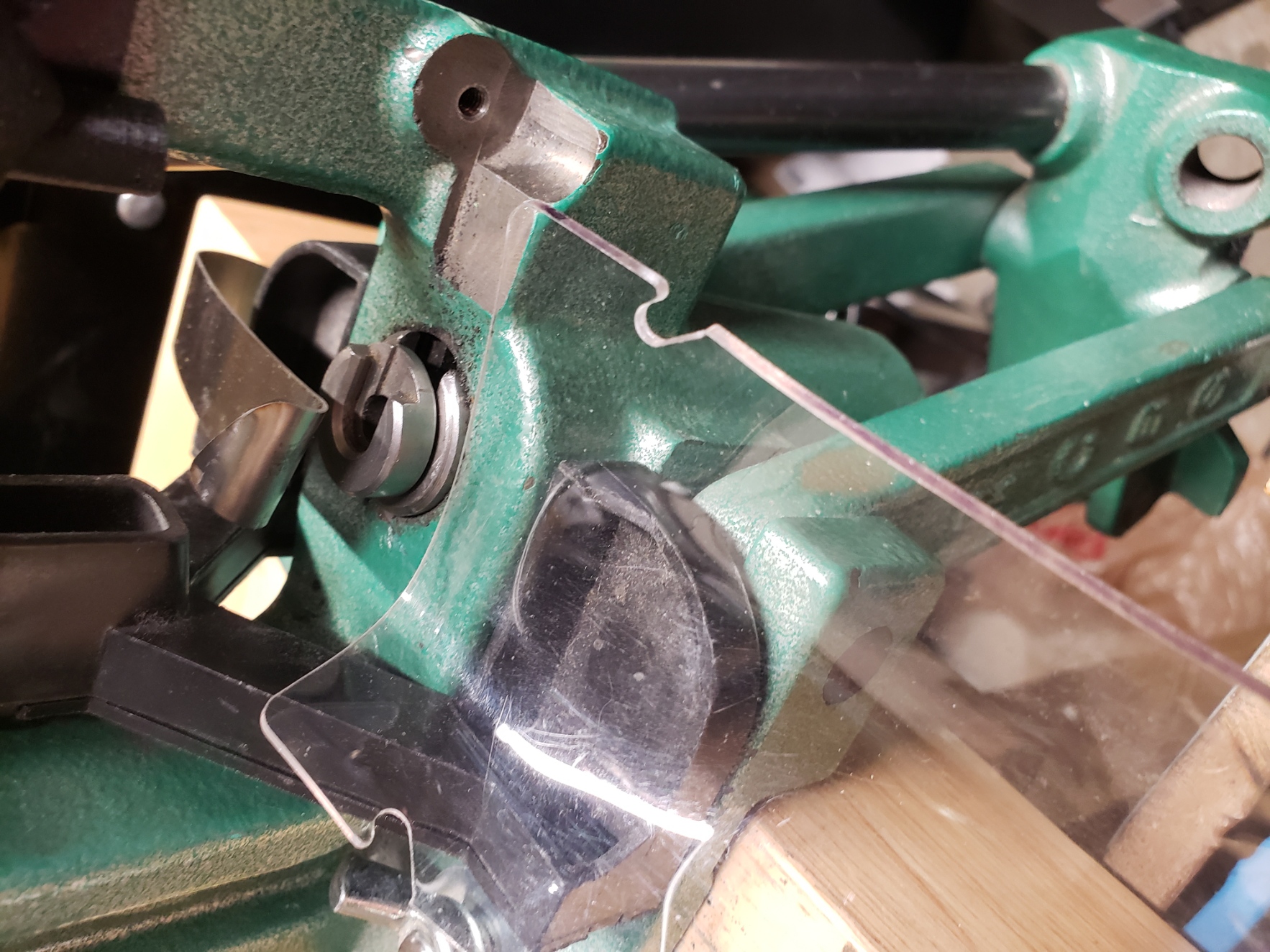

Next take the Speed Chute and place it so it is angled down as shown.

The end of the Speed Chute should not interfere with or touch the press piston. Approximately the size of one large rifle primer diameter

The end of the Speed Chute should not interfere with or touch the press piston. Approximately the size of one large rifle primer diameter

Hold the Speed Chute in place to ensure it will eject brass properly. Then attach the chute to your bench. Because of the multiple surfaces you can attach your press, we don't provide a screw to avoid giving you a wood screw but you have a metal bench, we hope you understand.

The Speed Chute should be able to rotate up in the event you need to service your press.

Rotate into position and...

RELOAD!

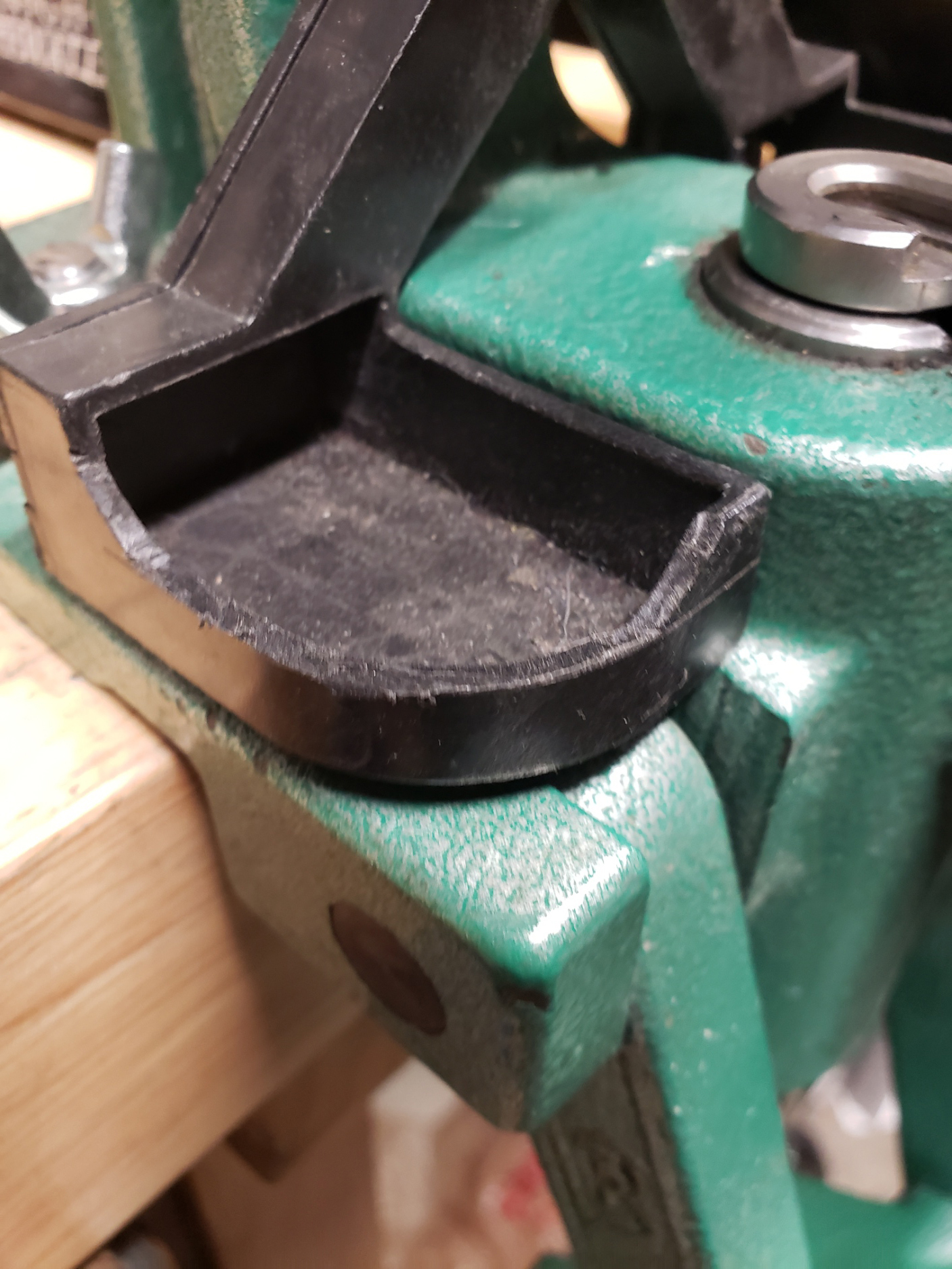

If you are using the Rock Chucker Supreme and would like to use the original primer catch you will need to make a small modification.

You will need to remove the top 5.5mm of the lip as shown to give clearance to the Speed Chute.

It will allow the proper angle for sliding down the Speed Chute.

Rapid Case Kicker® and Case Kicker®" are another tiny product line of TitanRCK

If you did not purchase from RapidCaseKicker.com you purchased counterfeit Case Kicker or Rapid Case Kicker that is likely violating our copyrights and likely our patents. Please help us in limiting the low quality products and demand your money back. You can learn more by checking out our "Legal" page under "Copyrights"
