What makes the Case Kicker® Different? We spent a lot of time trying to improve our design and make it better and we don't merely copy others.

The question you are going to ask is: "Will this fit my Rock Chucker from 1982?" The Answer: Maybe, It depends on if the lever is off to the side of the press piston.

    Rapid Case Kicker
    Press Type

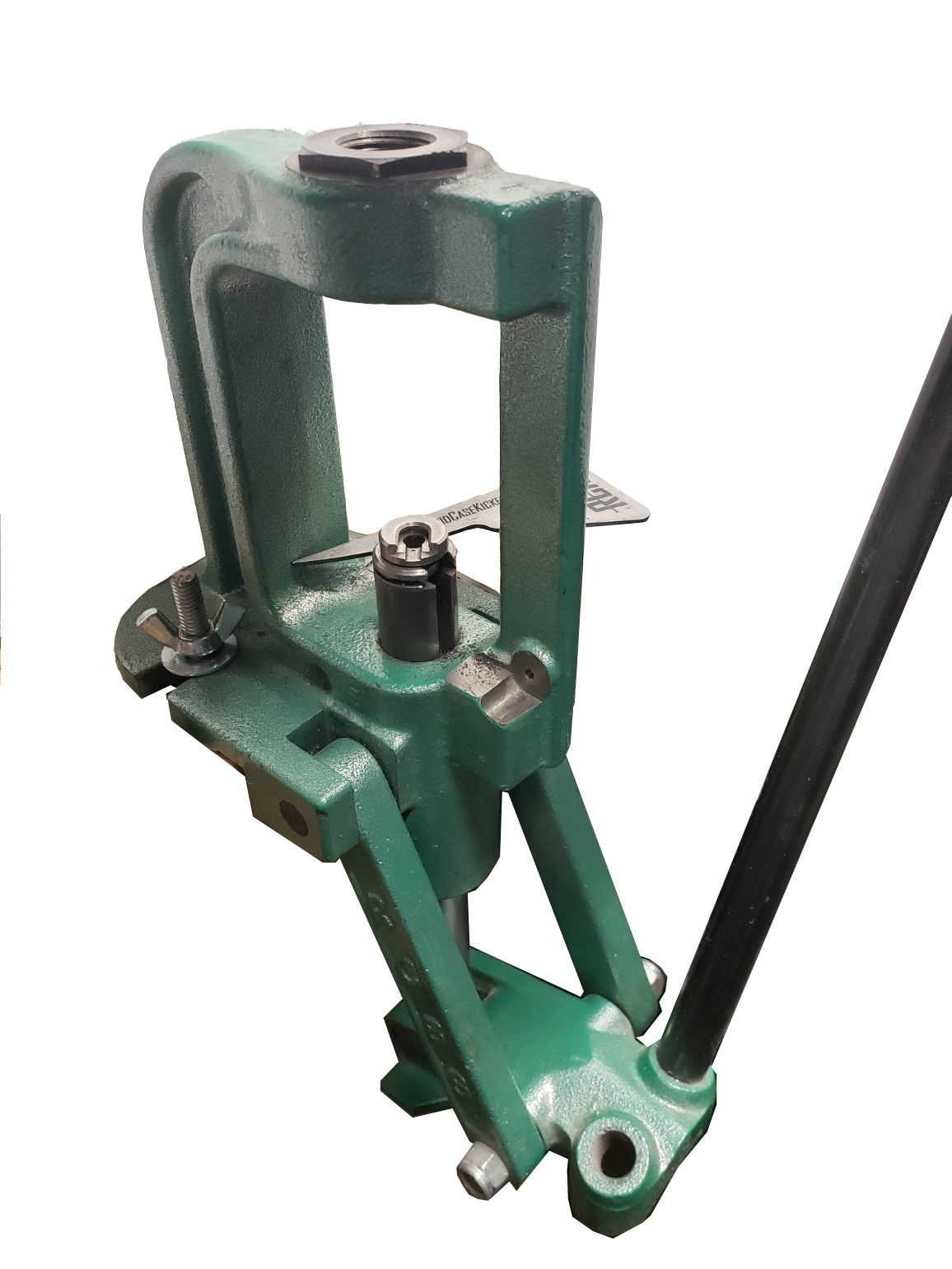

    Rapid Case Kicker Installed. Instructions Below

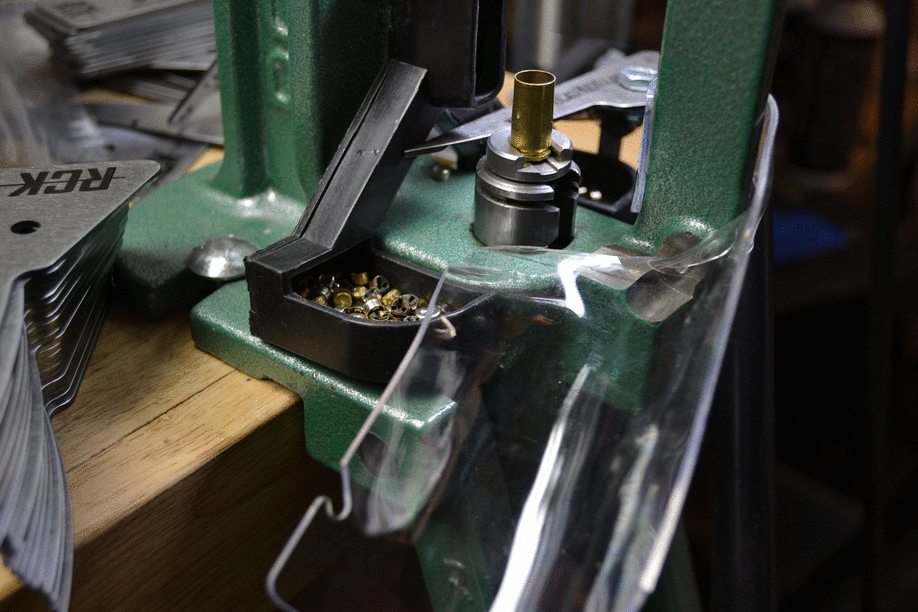

    The Rapid Case Kicker in Action

    Purchase From Amazon

    Purchase the RCBS Rock Chucker Supreme Press

Please Follow all the Instructions Below for Best Performance

The mounting of the Rapid Case Kicker is done by mounting it on the side of the press the handle is on. This can be adapted to left handed, contact us if you are interested.

HTML Ordered List
  1. The Rapid Case Kicker two additonal screws. We don't provide them as mounting surfaces vary and wood screws might not work for you, so we let you make the decision on how to best mount. Do not drill holes until you have properly aligned the Rapid Case Kicker.

It's that simple.

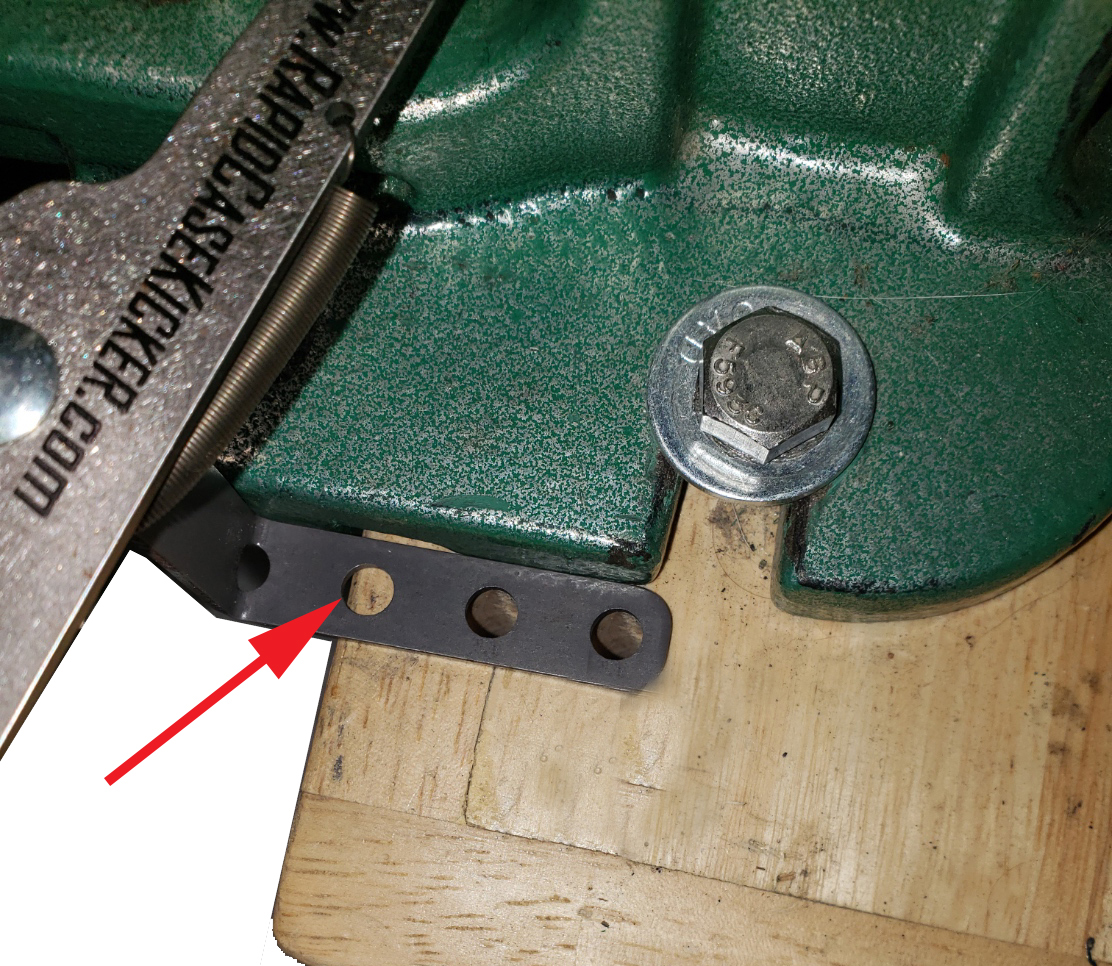

Once you have mounted your press, the edge of this hole needs to be aligned.

The edge of the first full hole should be in line with the press mounting surface. Hold it in place and make sure the handle activates the Rapid Case Kicker

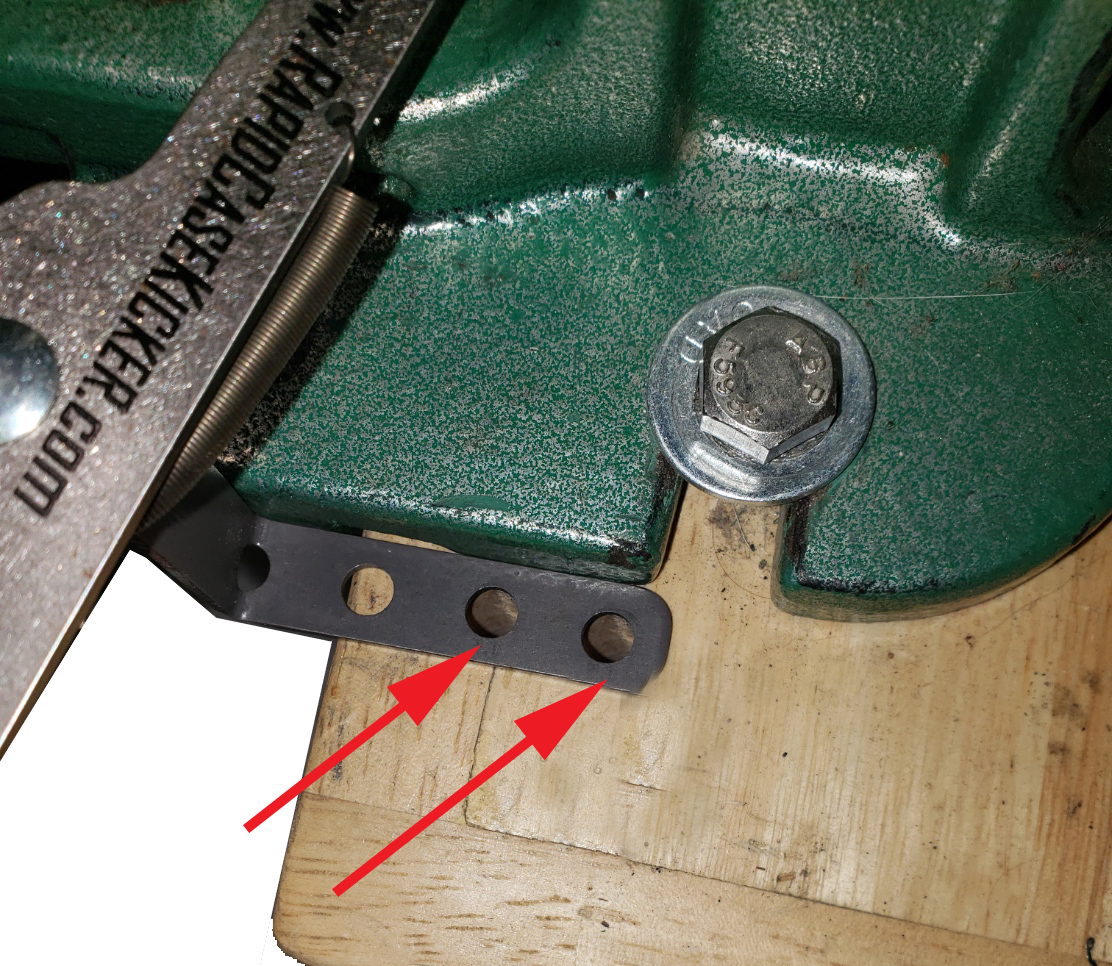

Once you have made sure it will operate properly, then mark where you will drill your holes. Prior to mounting wrap the spring as shown below

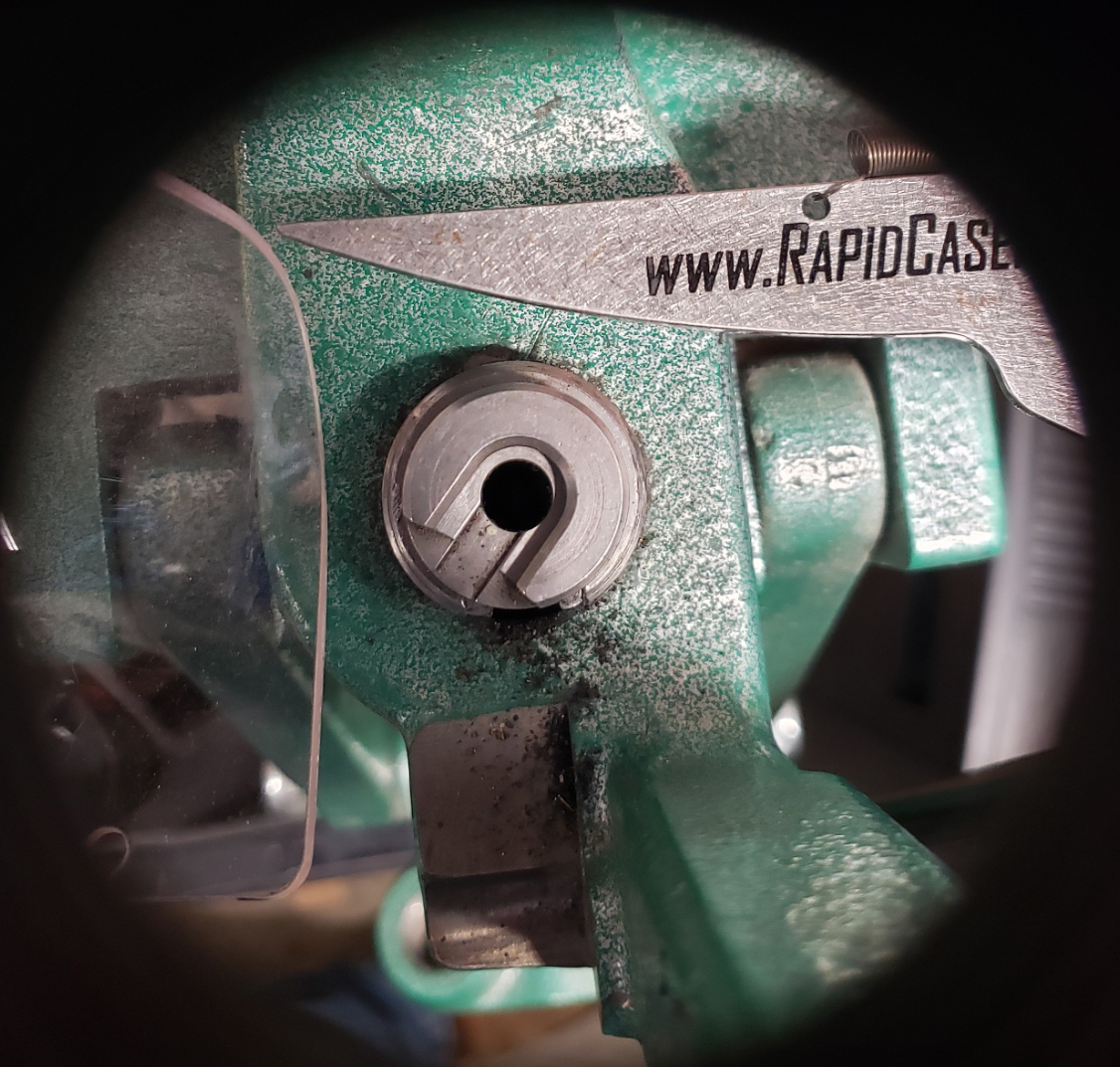

When looking down through the die hole, the shell plate should be angled at approximately 7 O'clock

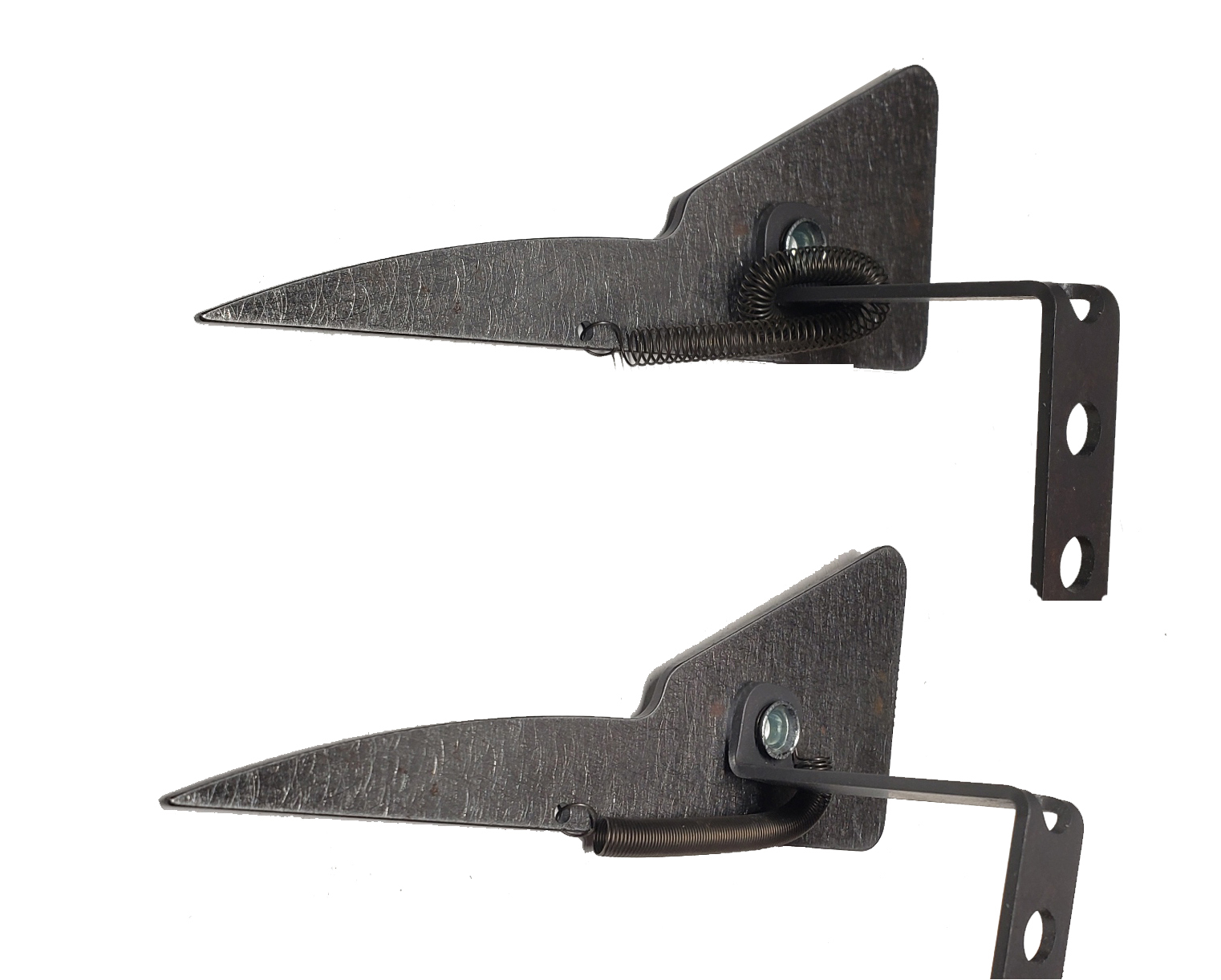

The spring has two settings, wrap it twice and it will push back harder.The hook end of the spring goes around the rivet bottom.

When properly installed it should look like this

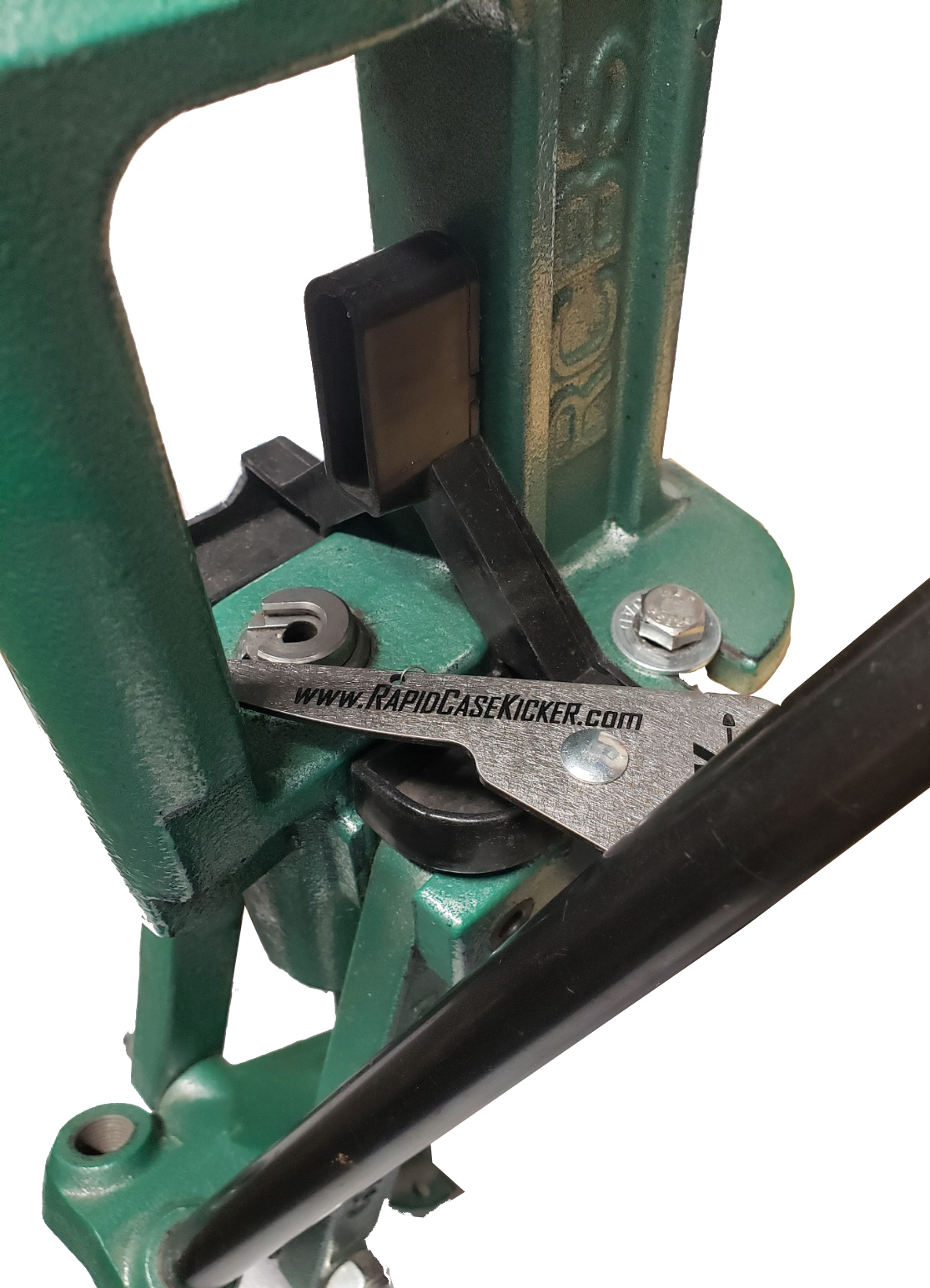

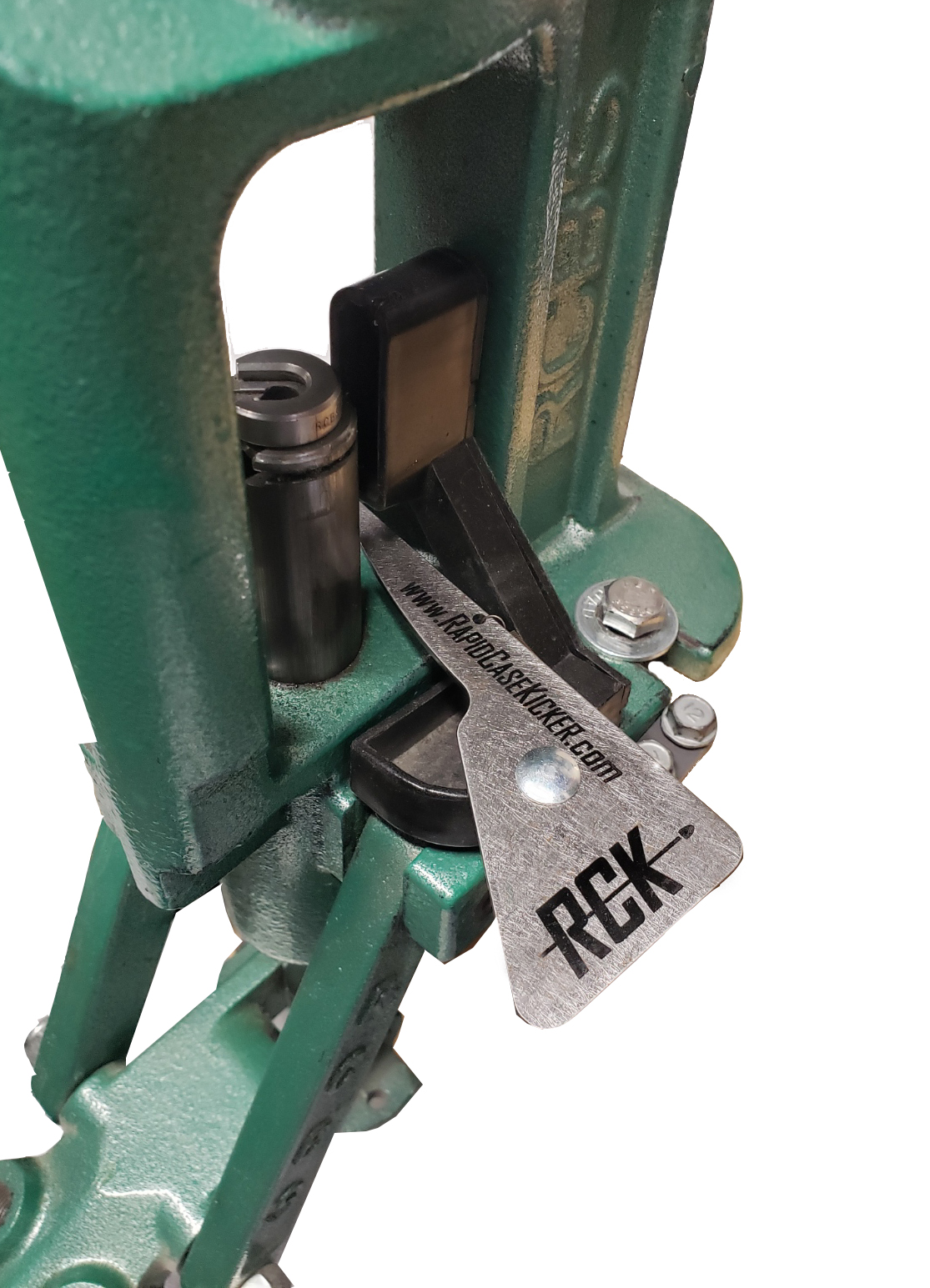

The handle should activate the Rapid Case Kicker as shown.

The stock primer catch can be used. There are third party 3D printed ones that we have seen, but we have decided our model isn't 100% so we aren't currently offering it.

Minor adjustment can be made by bending, by hand, the upright part of the base forward or backward. Be gentle, even slight bending makes significant changes in the clearnace of the arm over the shell plate.

The stock primer catch can be used. You will have to remove the section in red to allow the Speed Chute to function.

Now Mount the Speed Chute - Direct your brass where you want it.

Because of minor changes in the dimensions of the Rock Chuckers it might be necessary to make slight adjustments to send the brass in the precise location you want or to stabilize the Speed Chute where you want it.
I specfically designed it so you had those options.
Watch the Video

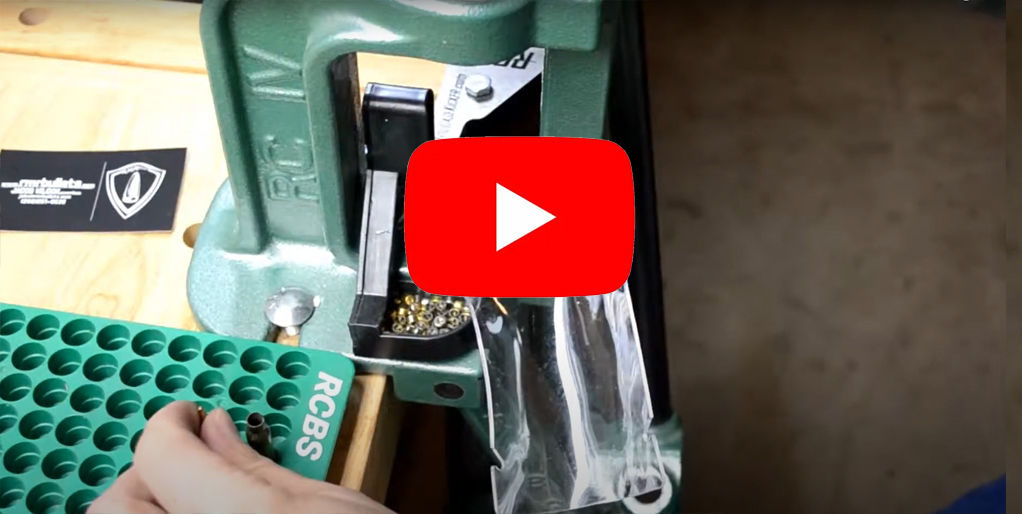

Video on forming the Speed Chute
